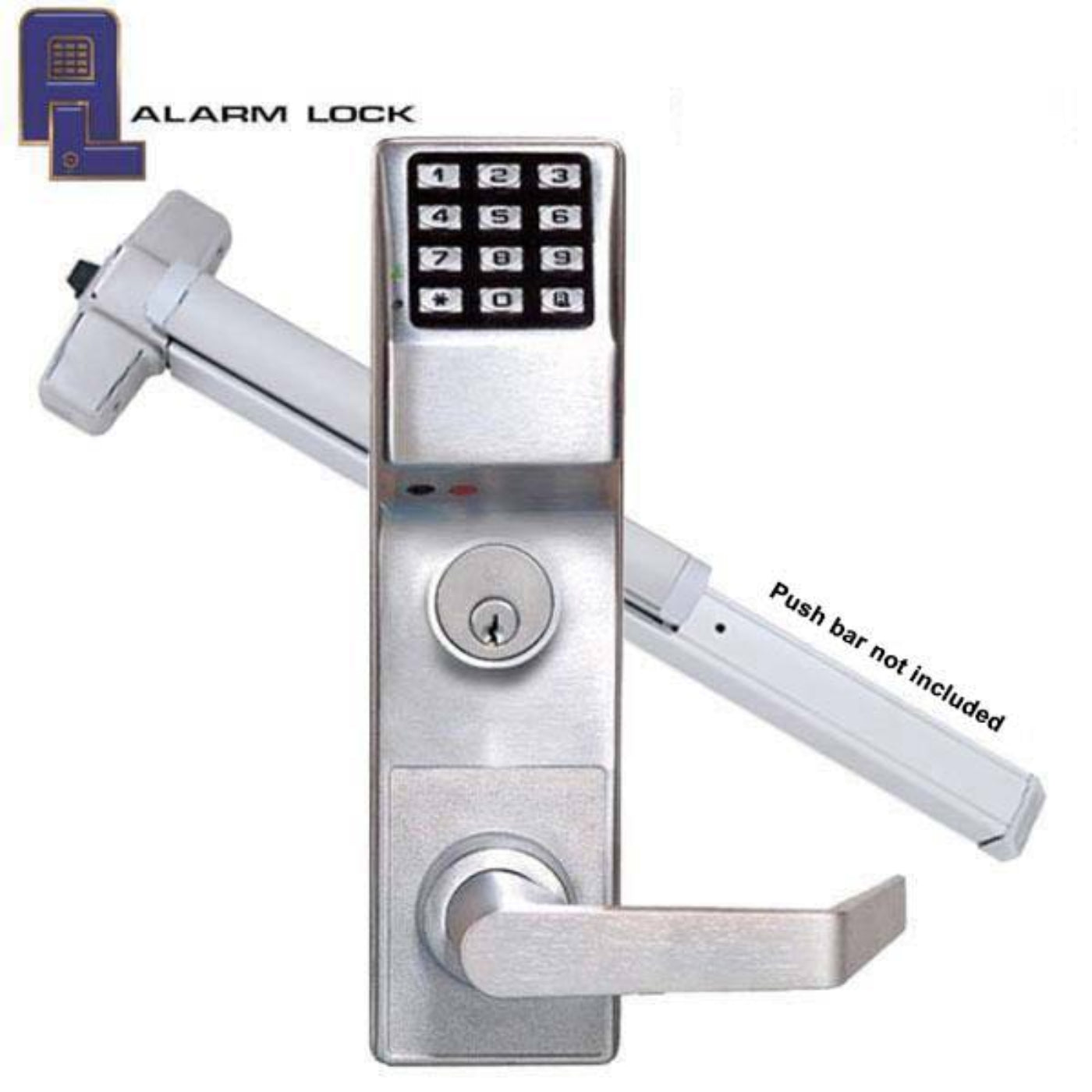

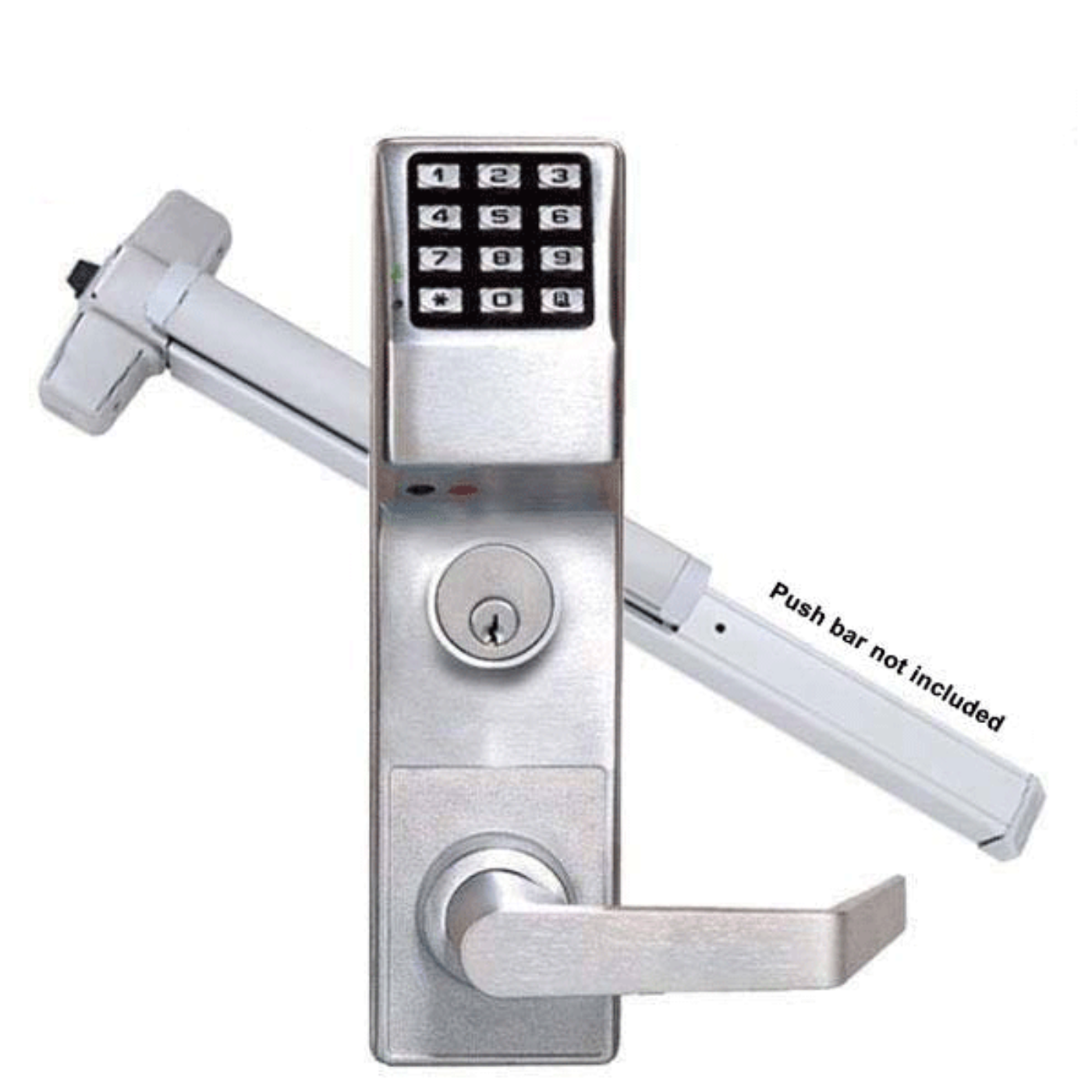

Alarm Lock Trilogy Networx Panic Exit Trim Keypad Digital Lock w/ Audit Trail - Von Duprin 9900 Prep - Satin Chrome

Description

Alarm Lock Trilogy Networx Panic Exit Trim Keypad Digital Lock w/ Audit Trail – Von Duprin 9900 Prep – Satin Chrome – ALL-ETDLNS1G/26DV99

Trilogy ETDLNS1G Panic Exit Trim Keypad Digital Lock Adapter kit and Cylinder, SC1 Straight Lever, Exit Trim, Door Thickness 1-3/4″ x 1/8″. Prepped for Von Duprin 99 exit device. Trusted by leading retailers, firms, schools, hospitals, and airports.

Audit Trail: Locks’ entry activity log can be polled to the Data Transfer Module (AL-DTMII), any PC using Alarm Lock’s DL-WINDOWS Software (Vsn.2.94 or higher), and/or can be on-site printed using the hand-held infrared printer (AL-IR1).

Prepped for Von Duprin 9900 Push Bar (Not Included)

Field-proven clutch Mechanism ensures long life and durability
Fingertip and/or Windows Programmable
2000 User Codes: Master, manager, supervisor and users
Real Time Clock for up to 40,000 Event Time/DateStamped Audit Trail
Up to 500 Lock/Unlock Schedules (with Time Zone Support)
Rugged 12-Button Weather-Resistant Metal Keypad
Non-Handed; Fully Field Reversible
Adaptable to most major manufacturers of standard RIM and IC RIM Cylinders (See separately ordered Cylinder Adapter Kit)
Battery operated; uses 5 AA batteries
Battery pack mounts to interior door. Located over or under panic bar (position dependent upon exit device manufacturer).

Downloads

Trilogy Exit Spec Sheet

What Our Experts Think

Wireless Networx keypad digital lock for panic exit trim
Designed to fit Von Duprin 9900 series panic exit bars
Satin chrome finish
Provides audit trail capability for tracking access
Ideal for securing exit doors with digital control

Q&A

Q: What is the Alarm Lock Trilogy Networx Panic Exit Trim Keypad Digital Lock (ALL-ETDLNS1G/26DV99)?
A: The Alarm Lock Trilogy Networx Panic Exit Trim Keypad Digital Lock (ALL-ETDLNS1G/26DV99) is a wireless, keyless access control solution designed to integrate with Von Duprin 9900 panic exit devices. It features a digital keypad for secure access, along with wireless connectivity for remote management.

Q: What finish does it come in?
A: This model comes in a Satin Chrome (26D) finish, providing a sleek, modern look suitable for commercial settings.

Q: What access methods are supported?
A: It supports keypad entry, allowing users to input a PIN code for secure access. This ensures fast and convenient entry without the need for keys.

Q: Does it include an audit trail feature?
A: Yes, the lock comes with a high-capacity audit trail, tracking and recording up to 40,000 events, providing comprehensive access activity logs for security management.

Q: What kind of networking capabilities does it offer?
A: The lock is part of the Networx series, offering wireless networking capabilities for remote programming, monitoring, and access control management.

Q: Is it compatible with Von Duprin exit devices?
A: Yes, this lock is specifically designed to work with Von Duprin 9900 series panic exit devices, ensuring seamless integration for secure exit doors.

Q: Where is this lock best suited for?
A: This lock is ideal for high-security commercial environments like offices, schools, and healthcare facilities, where controlled access to panic exit doors is required.

Maintenance Tips

Battery Replacement: Change batteries every 1-2 years or when the low battery indicator activates.
Clean Keypad & Prox Reader: Regularly wipe with a soft, damp cloth to prevent dirt buildup.
Audit Trail Monitoring: Frequently download and review audit trail data to track and manage access control.
Network Connectivity: Periodically check wireless network connections for uninterrupted remote management.
Panic Exit Function Test: Regularly test the panic exit feature to ensure it operates smoothly.
Firmware Updates: Keep firmware up to date for enhanced security and performance.
Lubrication: Apply silicone-based lubricant every 6 months to maintain smooth exit trim and lock operation.
