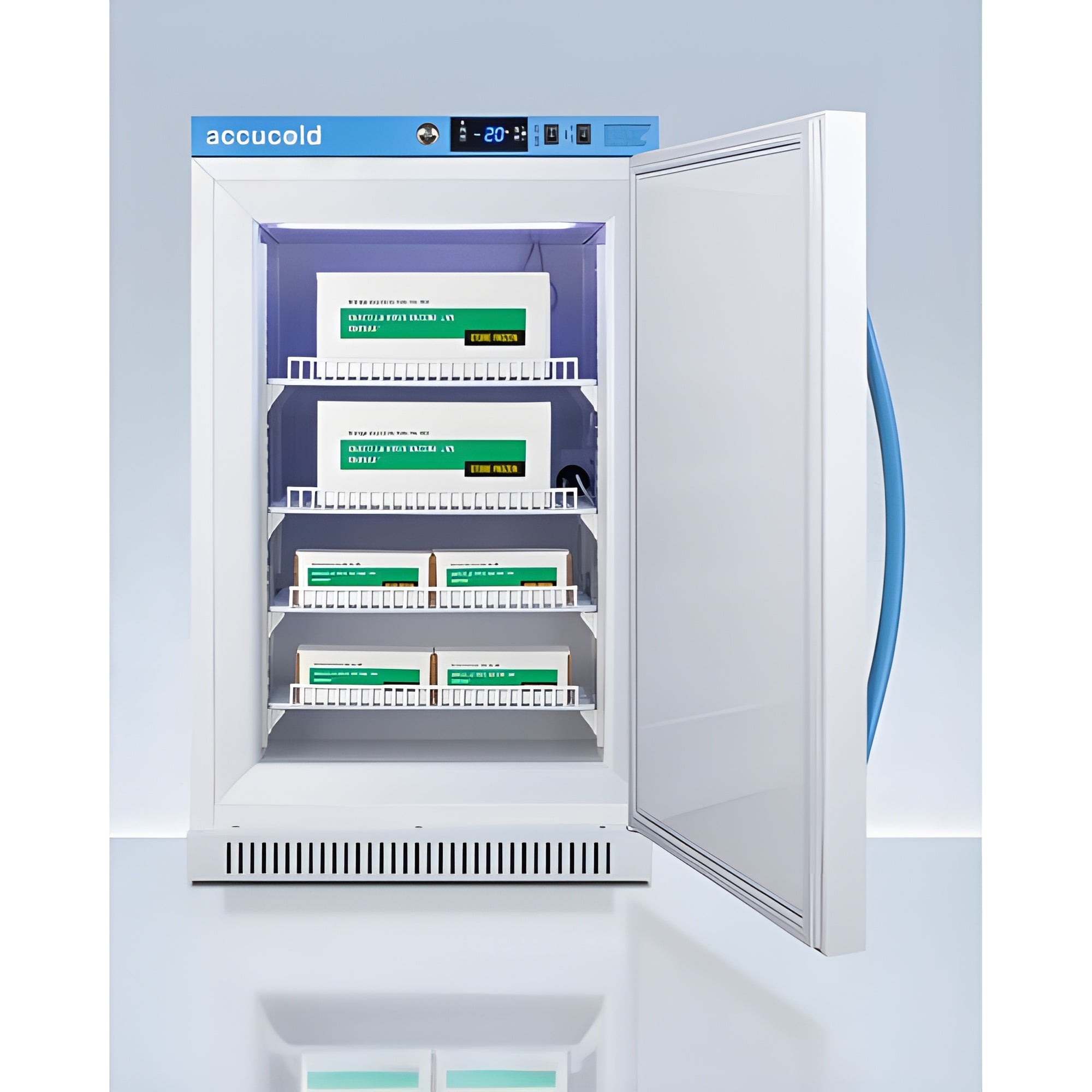

Accucold- 2.47 Cu.Ft. Vaccine Freezer, ADA Height – AFZ2PVBIADADL2B

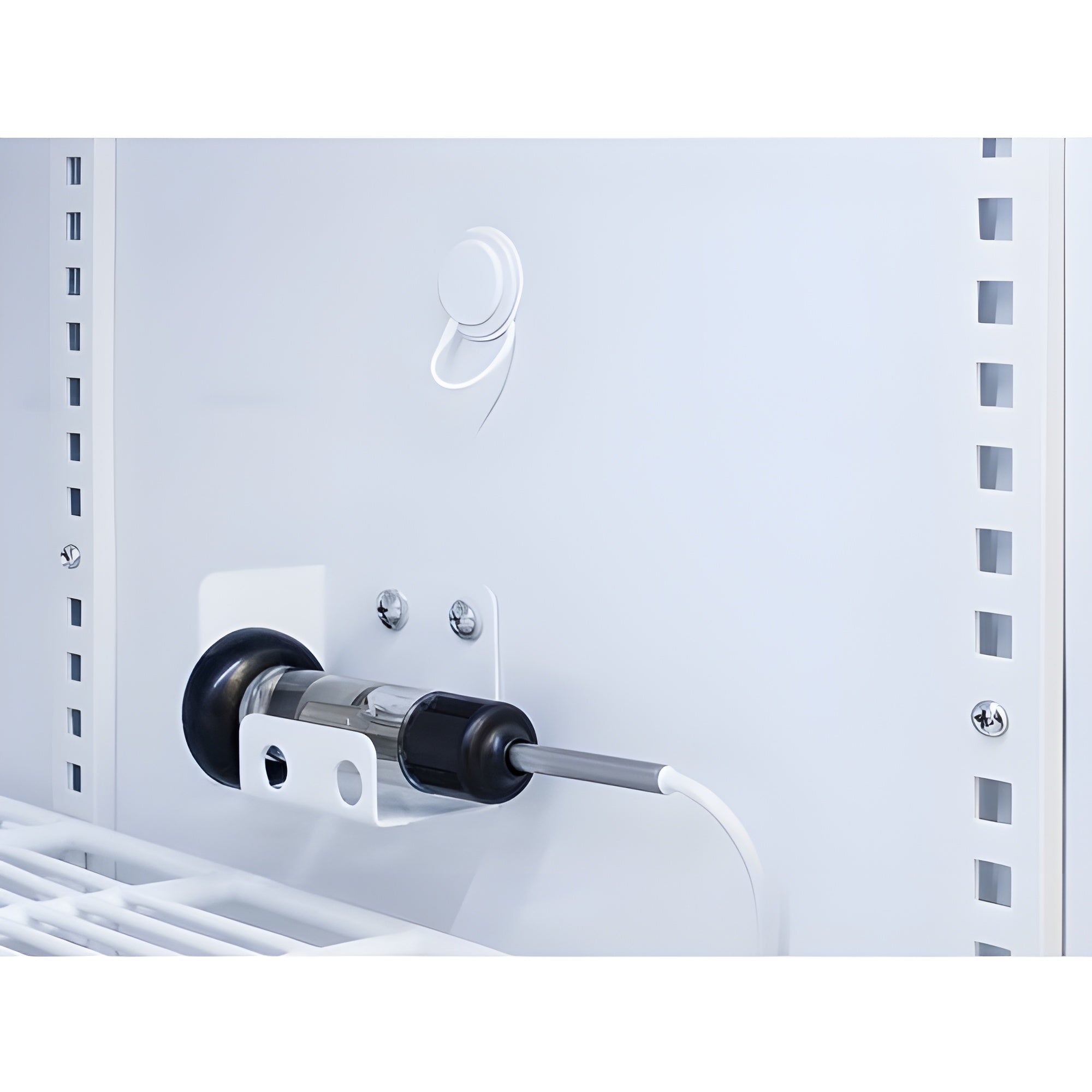

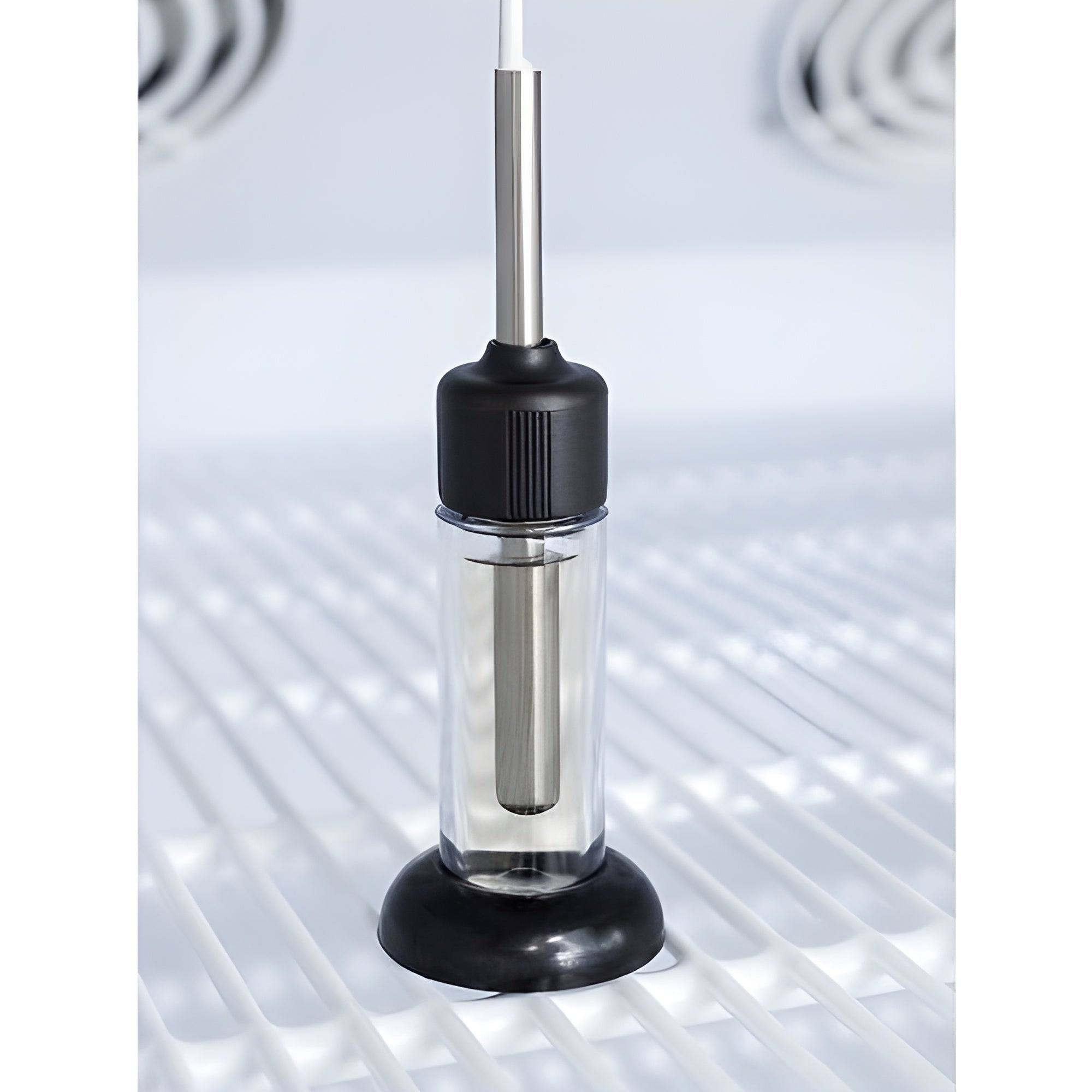

2.47 Cu.Ft. All-Freezer for Vaccine StorageThe AFZ2PVBIADADL2B is a compact 2.47 cu.ft. all-freezer, designed for freestanding or recessed installation and compliant with ADA guidelines. It maintains a temperature range of -30°C to -10°C, ideal for vaccines and pharmaceuticals. The microprocessor temperature controller is externally located to reduce door openings, while a buffered temperature probe in glycol ensures accurate temperature readings. Additional features include a min/max temperature display, an audible and visual temperature alarm, and remote alarm contacts for external monitoring. A hospital-grade power cord enhances safety in high-traffic areas. This unit includes the DL2B digital data logger, NIST calibrated and ISO/IEC 17025:2017 certified, with a large LCD display and internal memory storing up to 32,000 data groups. Data can be transferred via a 4GB USB flash drive and reviewed in Excel or .CSV-compatible software. Users can customize recording intervals, and a 2-year calibration certificate is included, with re-calibration options available.
Features
Performance Series Freezer
Purpose-Built Design
- Medical Storage: Designed for vaccine, pharmaceutical, and life science applications
- CDC/VFC Compliance: Supports guidelines for pharmacy, medication, and vaccine storage
Compact & Versatile Fit
- ADA Compliant: Under 32″ tall to fit under ADA-compliant counters
- Recessed or Freestanding Use: Suitable for under-counter installation or standalone placement
Precision Temperature Control
- Adjustable Temperature: Set between -30°C to -10°C
- +/-1ºC Variation: Ensures stable temperature conditions
- Temperature Alarm: Alerts if temperature deviates from the set range

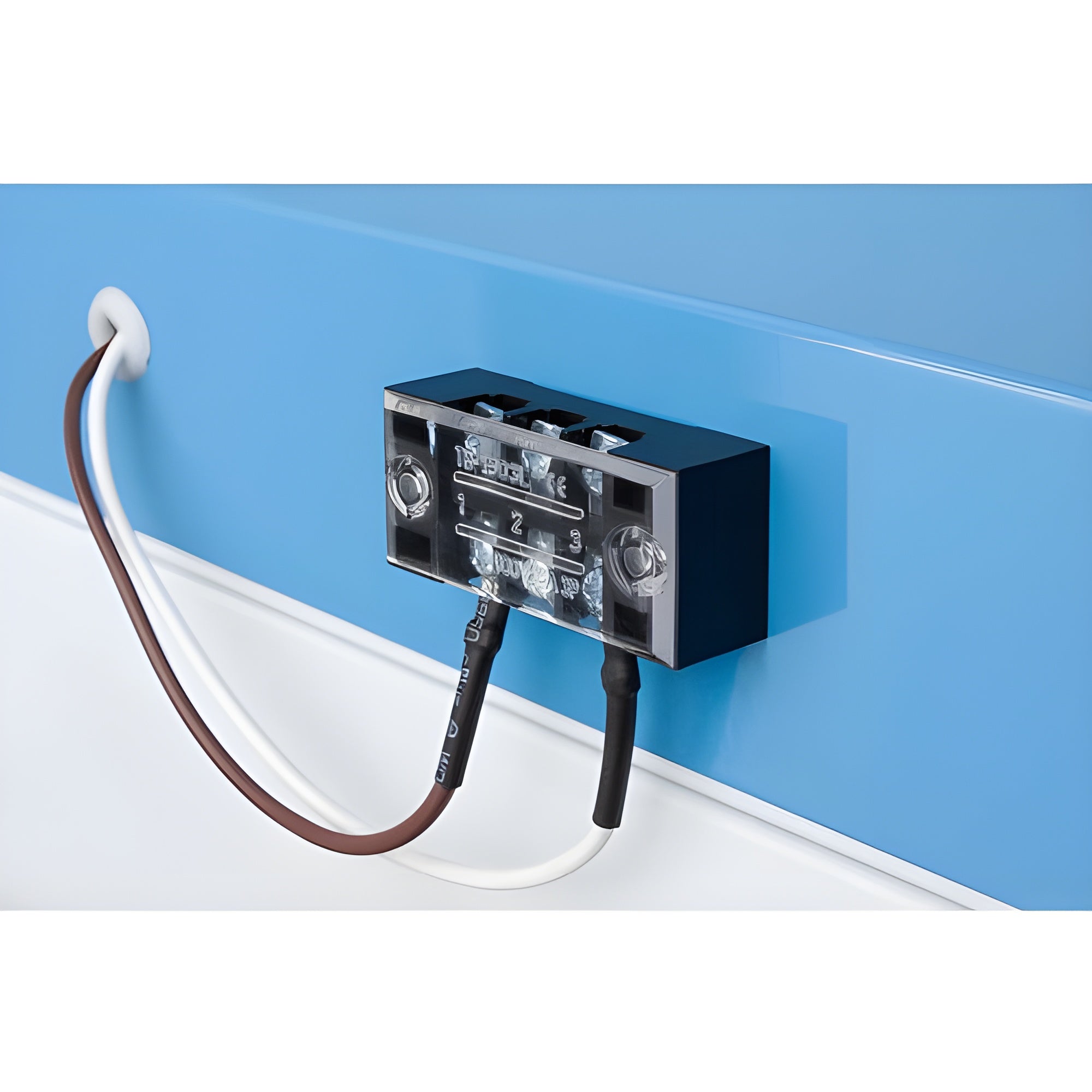

- Remote Alarm Contacts: Allows connection to an external monitoring system
- Sensor Failure Alarm: Notifies of any temperature sensor disruption
Advanced Monitoring & Security
- Digital Data Logger (DDL): NIST-calibrated logger with customizable logging intervals and USB storage

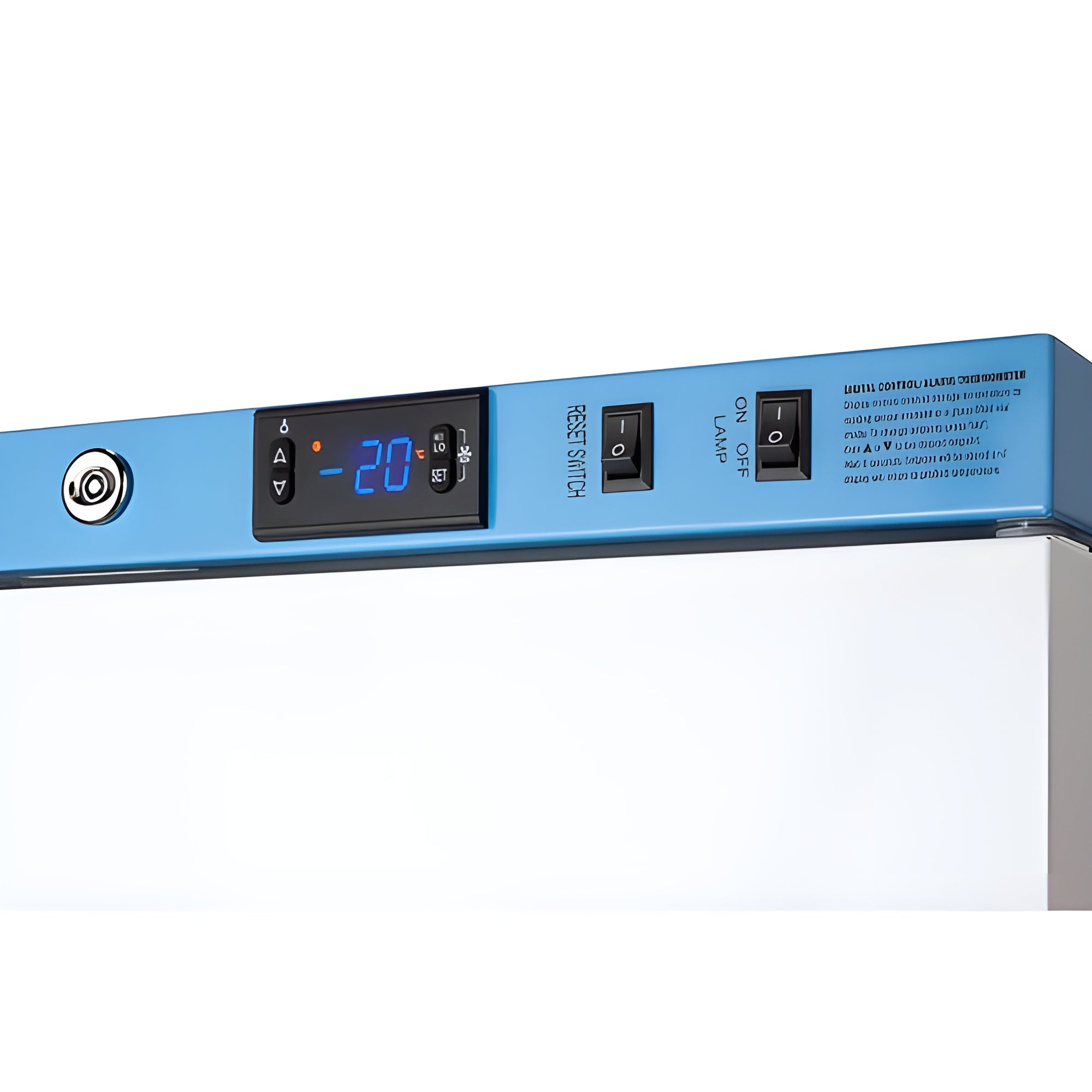

- Microprocessor Control Panel: Digital LED display in Celsius or Fahrenheit
- Resettable Min/Max Display: Logs temperature fluctuations in 15-minute increments
- Password Protection: Restricts control panel access for security
Efficient Cooling & Safety Features
- Manual Defrost: Stable interior with static cooling system
- Access Port: Pre-installed 1/2″ probe hole for monitoring equipment
- Audible Power Failure Alarm: Battery-powered alert during power outages
- Open Door Alarm: Triggers if left ajar for over 4 minutes (adjustable up to 99 minutes)
- Self-Closing Door: Prevents accidental door openings in busy environments
Commercial-Grade Durability
- UL-471 Commercial Standards: Meets industry-grade safety and performance requirements
- Hospital-Grade Cord: Secure three-pronged cord with ‘green dot’ plug
- Magnetic Door Gasket: Ensures a tight seal for efficiency and performance
- Durable Interior: Powder-coated metal walls for strength and temperature retention
- Factory-Installed Lock: Top-mounted keyed lock with two keys included
Enhanced Usability & Organization
- Interior Light: Energy-efficient LED lighting with internal on/off switch

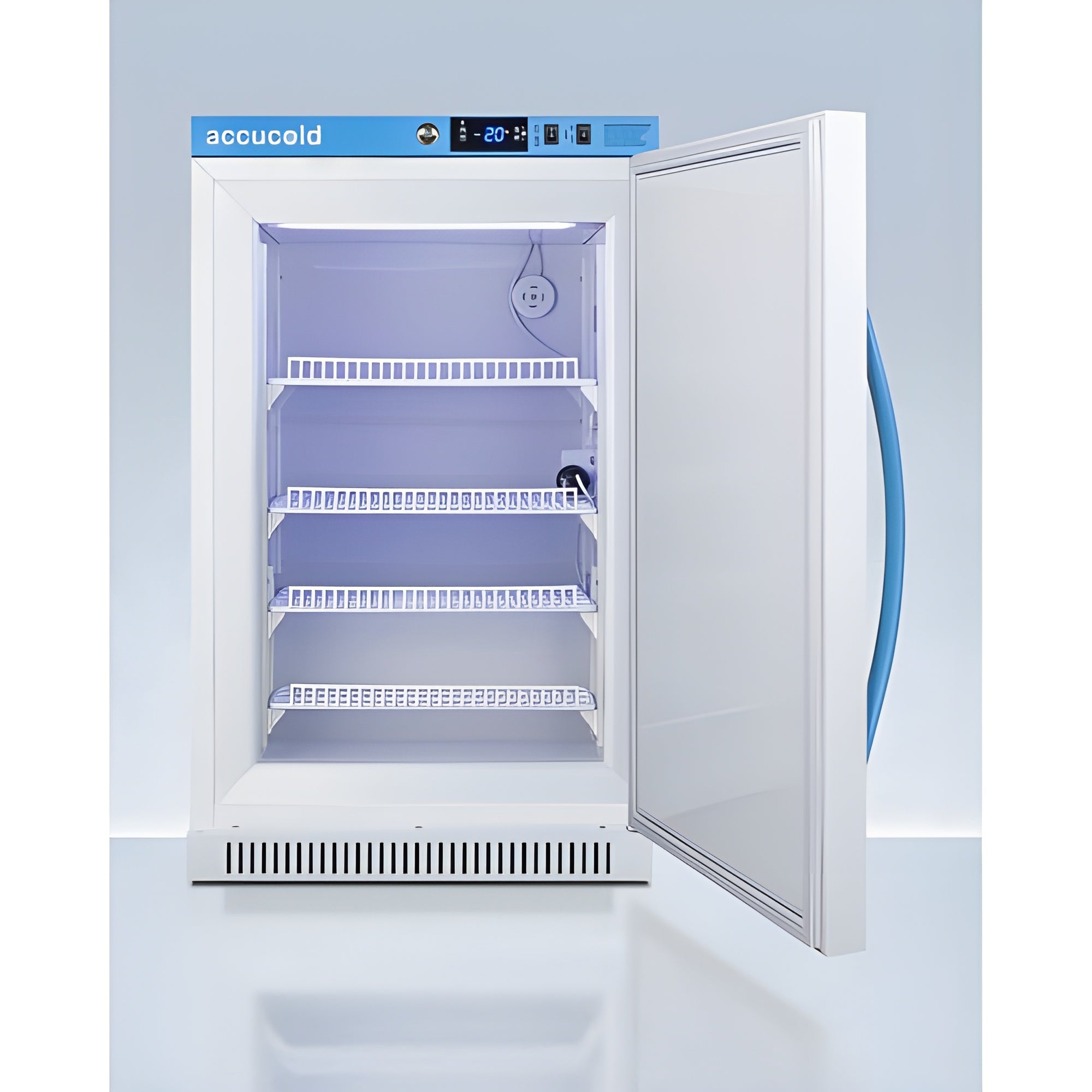

- Adjustable Wire Shelves: Multiple positions with reversible lip for small or large storage items
- Antimicrobial Handle: Silver ion-coated handle reduces germ spread
Eco-Friendly & Compliance
- Environmentally Friendly Refrigerant: Uses hydrocarbon-based refrigerants with no CFCs
- CARB Compliant: Meets California regulations for a greener footprint
Additional Features
- Usage Stickers: Includes warning labels for restricted access and proper use
- Matching Refrigerator Available: Pairs with select Accucold models for side-by-side or stacked configurations
- Extended Warranty: 2 years parts & labor / 5 years compressor
Manual
What Our Experts Think
- 2.47 Cu. Ft. capacity provides compact and secure storage for vaccines.
- ADA-compliant height allows for convenient access for all users.
- Digital temperature control ensures precise temperature management for safe vaccine storage.
- Self-closing, lockable door enhances security and energy efficiency.
- Stainless steel construction ensures durability and easy maintenance.
Q&A
Q: What is the Accucold AFZ2PVBIADADL2B?
A: A 2.47 cu. ft. vaccine freezer designed for secure storage of vaccines and medical materials, with ADA-compliant height for easy accessibility.
Q: What is the temperature range?
A: Maintains a stable freezing temperature, perfect for storing vaccines and other temperature-sensitive medical products.
Q: What is the capacity of this unit?
A: Provides 2.47 cu. ft. of storage space, ideal for compact vaccine storage in medical facilities.
Q: Is this unit ADA-compliant?
A: Yes, it meets ADA height guidelines for accessibility.
Q: Where can this unit be used?
A: Ideal for hospitals, pharmacies, clinics, and vaccination centers that require secure and efficient vaccine storage.
Q: Does it require special installation?
A: No, it is a freestanding unit and is easy to install.
Maintenance Tips
- Clean Regularly – Wipe the interior and exterior with a soft cloth and mild detergent.
- Defrost as Needed – Prevent ice buildup to ensure efficient cooling performance.
- Check Door Seals – Ensure seals are tight to maintain the correct temperature.
- Monitor Temperature – Ensure the temperature stays within safe vaccine storage ranges.
- Ensure Proper Airflow – Keep vents clear for optimal cooling efficiency.
- Inspect Coils – Clean condenser coils periodically to maintain energy efficiency.
